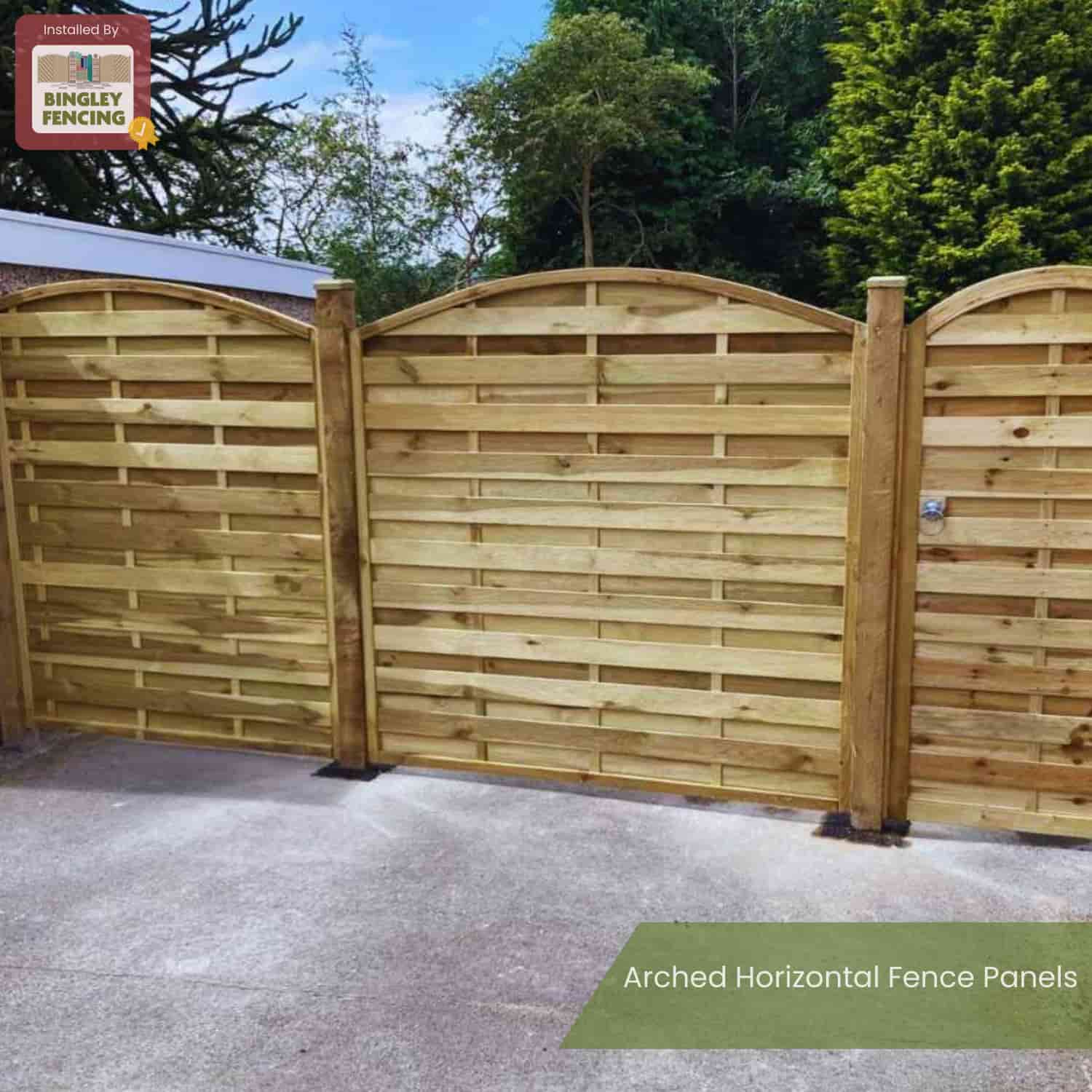

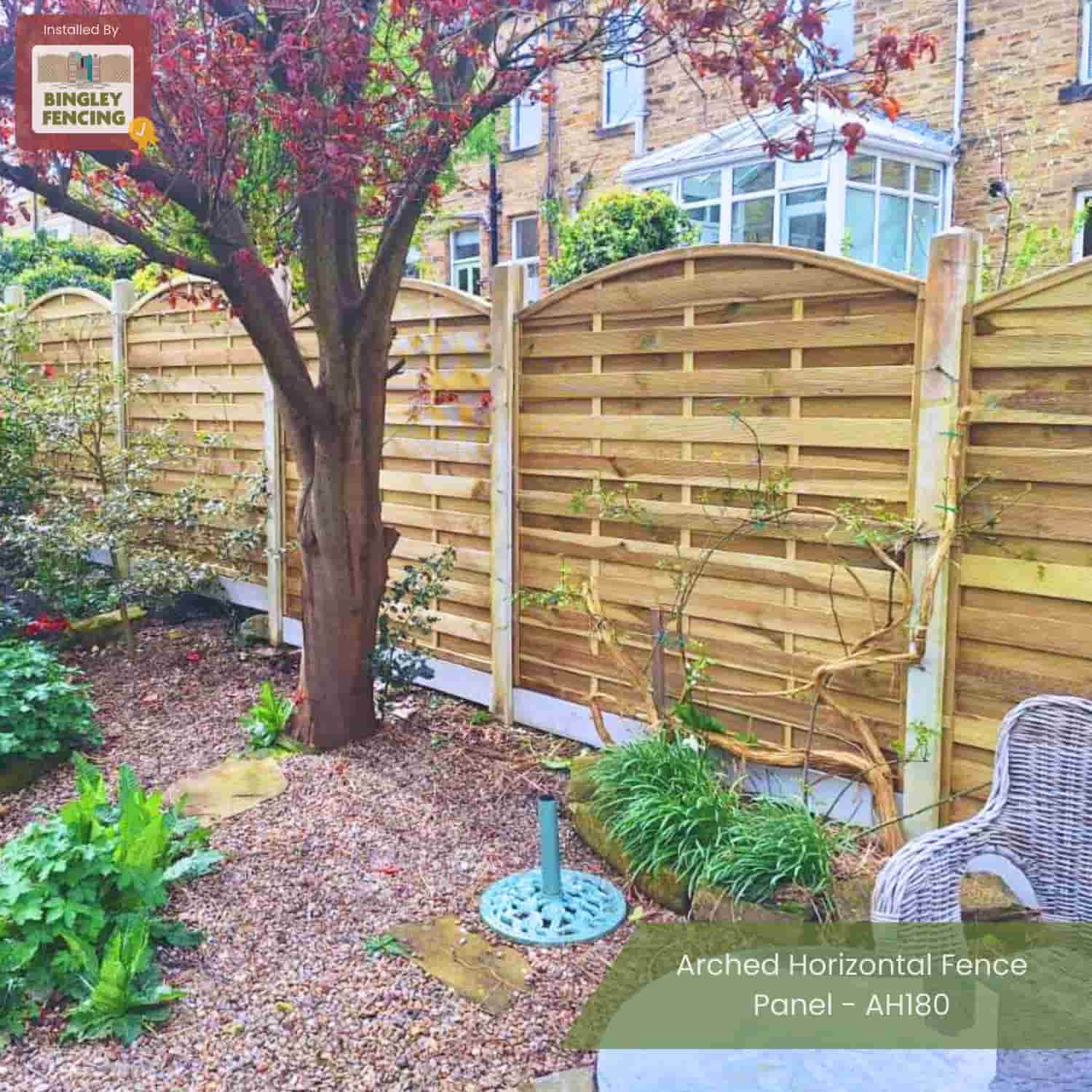

Arched Horizontal Fence Panel (AH180)
This KDM fence design features solid horizontal slats in a robust frame finished to a high standard with smooth planed edges.Ā
The decorative arched top of the panels give a different overall aesthetic look to typical square fence.
A popular selling fence design by from the KDM range.
Fence Specification
| Feature | Specification |
|---|---|
| Panel Width | 1800mm (6ft) |
| Panel Heights | 1800mm (6ft) Only - height is measured at the centre of the arch |
| Panel Customisation | Yes - we can modify these products in house.Ā |
| Timber Treatment | Tanalised ( Pressure Treated) Requires Minimal Maintenance |
| Timber | Treated softwood, Class 3/4 |
| Panel Construction | Panels have mortise & tenon joints, and the boards are screwed on rather than nailed. Rebated framing all around. |
| ComponentĀ Dimensions |
Framing 45mm x 55mm |
| Surface Finish |
Smooth planed with rounded edges. |
| Benefits |
Privacy, Security, aesthetics |
| Important Info |
European panels sizes are based on 1800mm wide - which just slightly shorter of regular 6ft width panels (1830mm). If you are installing the panels into existing posts you may need a Panel Extension Kit to fit in the space of a regular fence panel. |
| Matching Products |
Arched Top Gate, Smooth Planed Euro- Post |
- Fence posts (timber & concrete)
- Gravel boards
- Fence panel capping
- Fixings & installation accessories
Ā
