Square Horizontal Fence Panels (SH)
The wide range of European Fence panels manufactured by KDM offer a quality product in a well known range of different designs depending on your requirements.

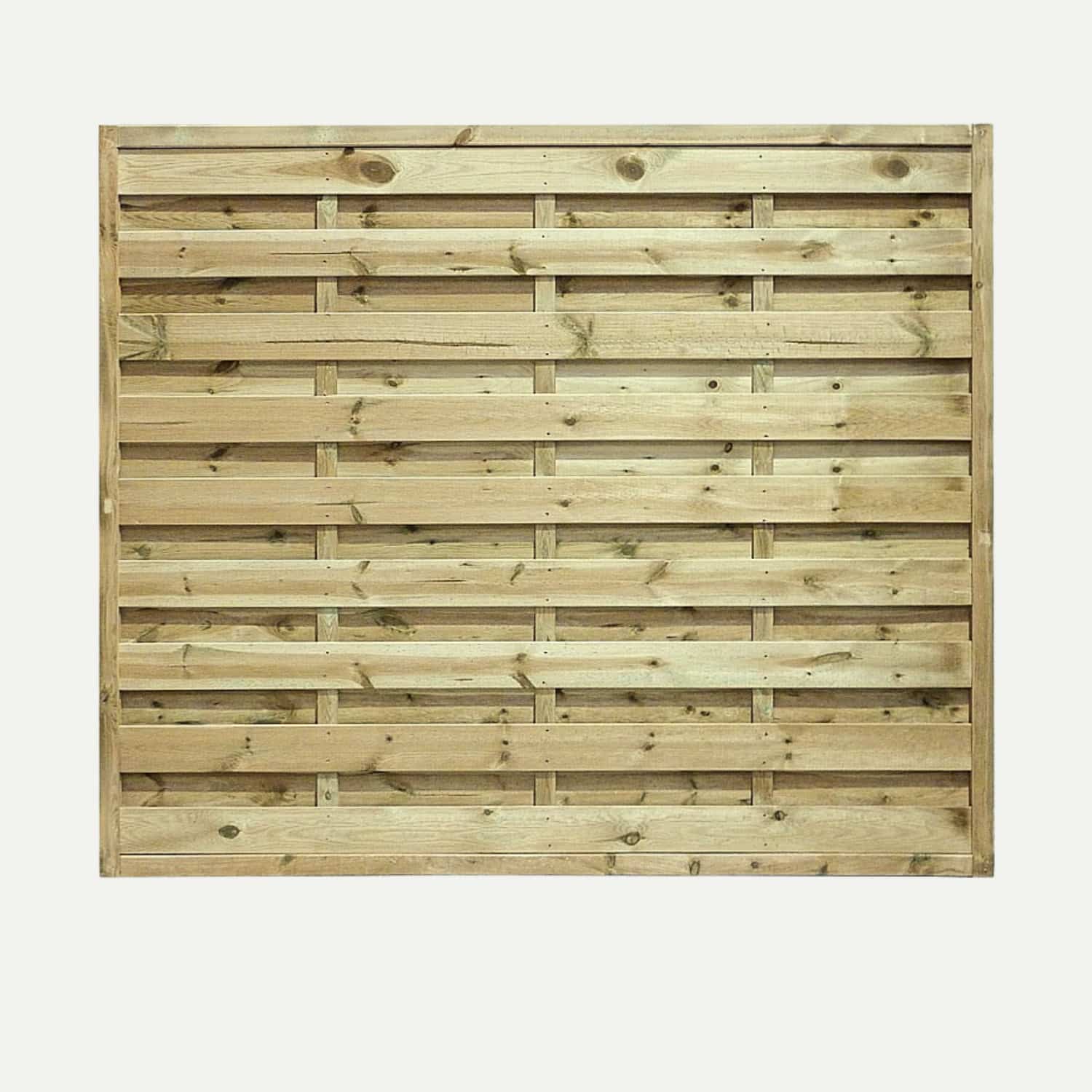

This fence design features solid horizontal slats in a robust frame finished to a high standard with smooth planed edges.

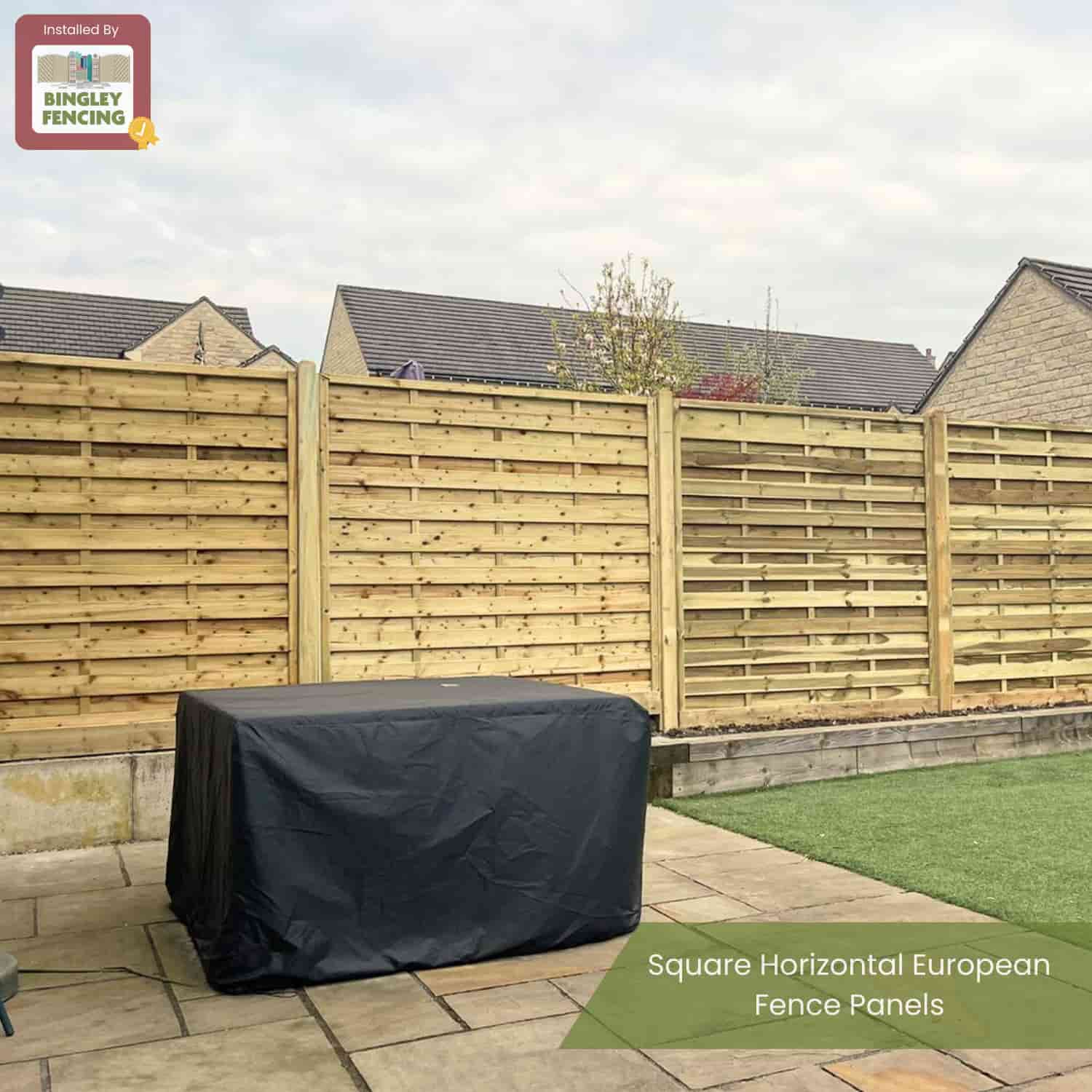

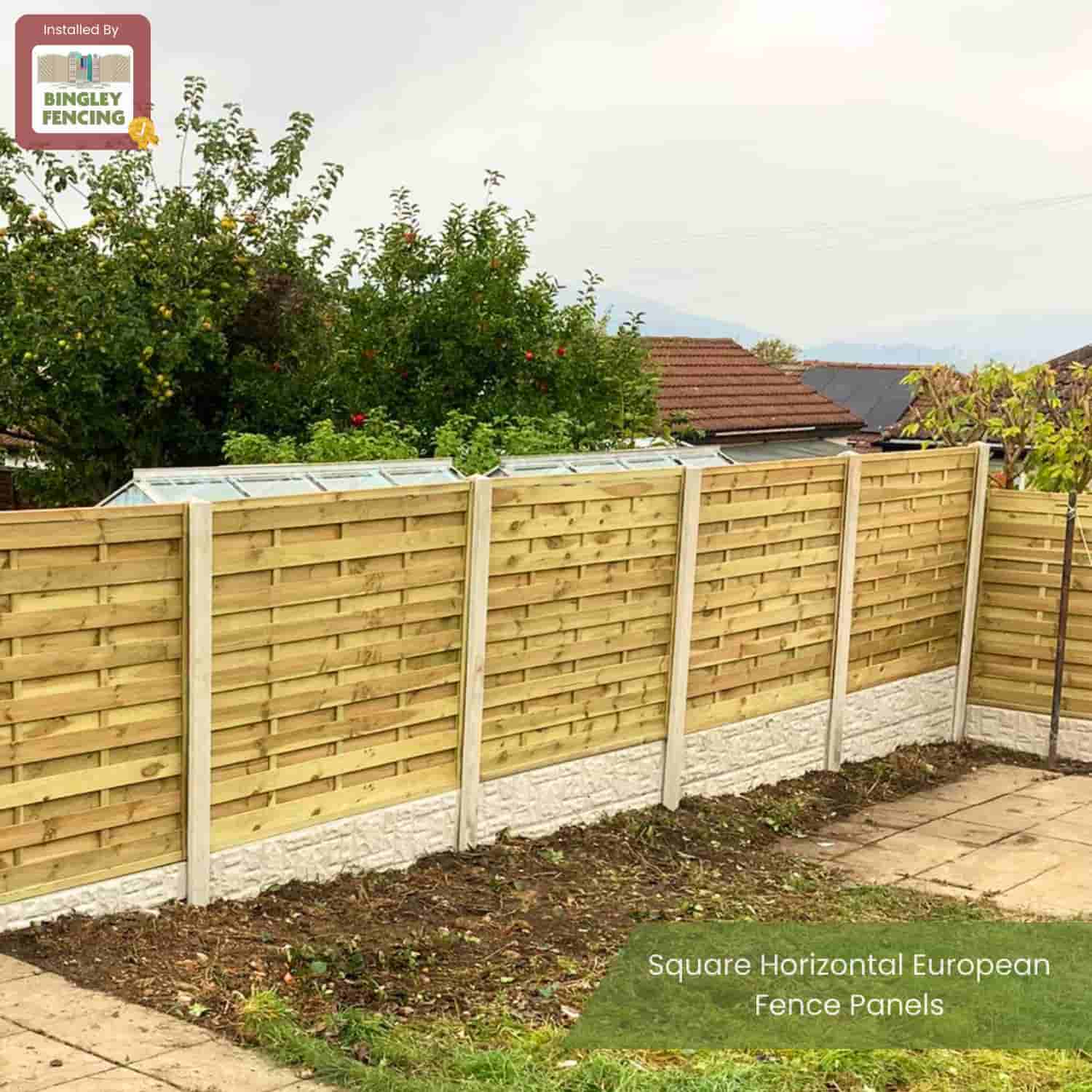

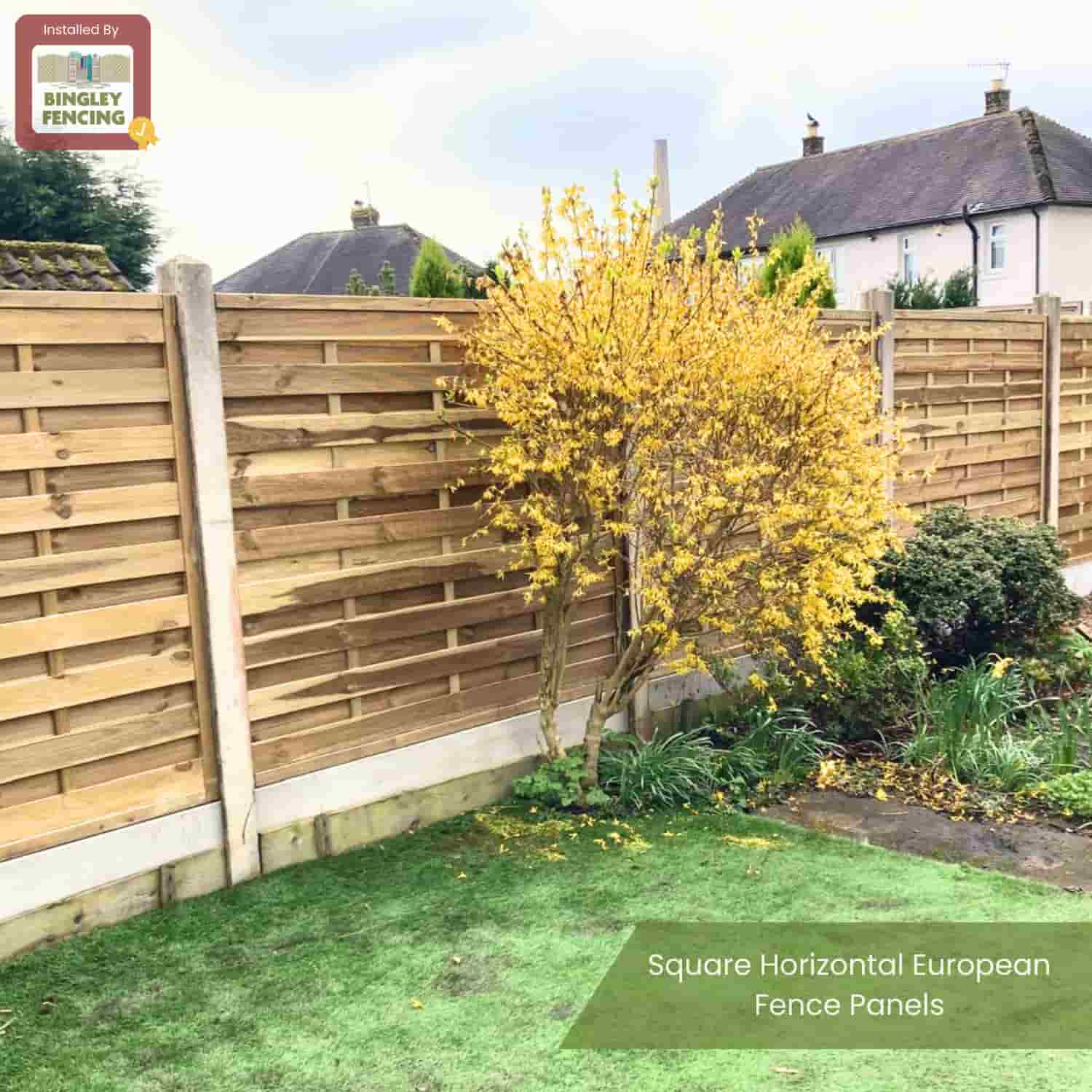

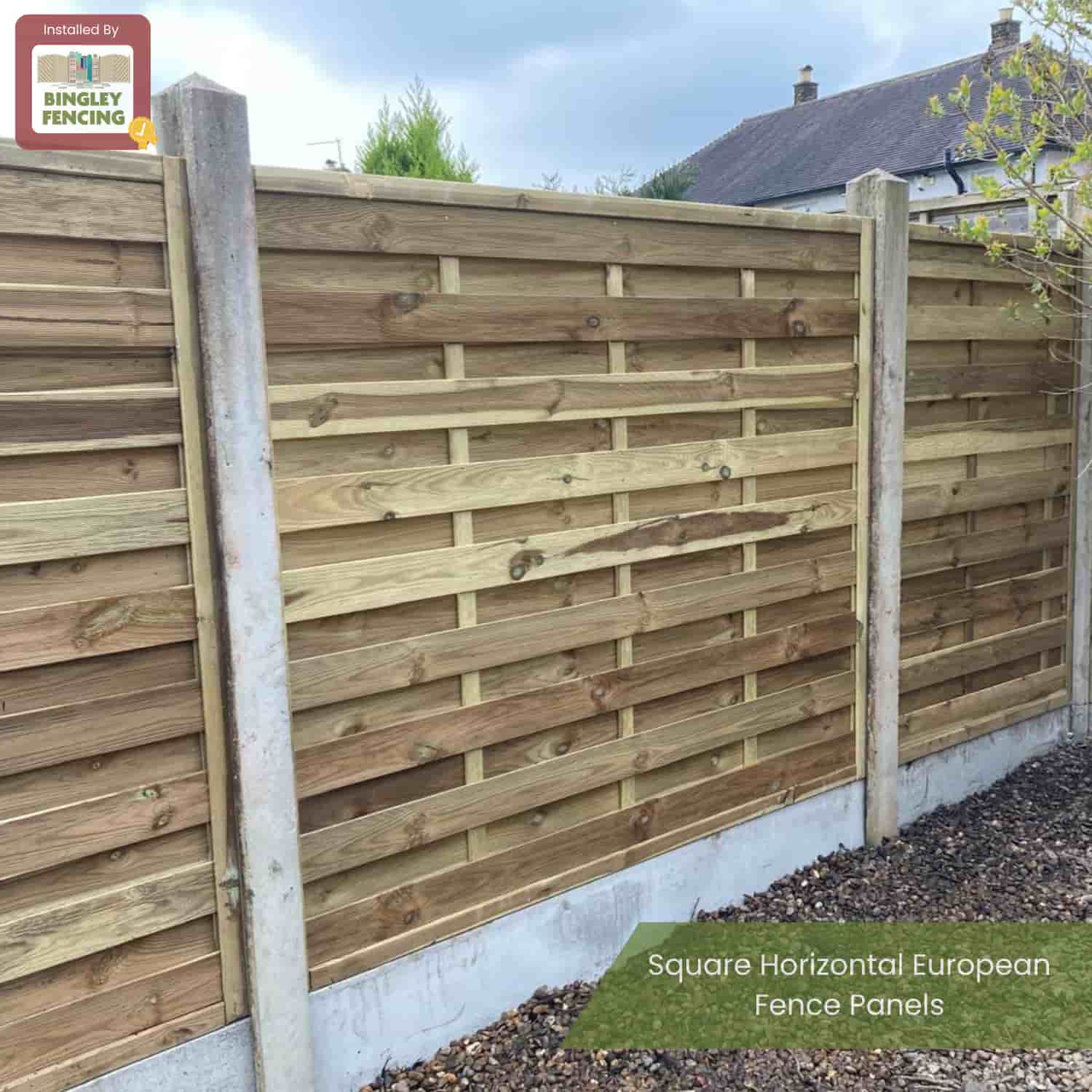

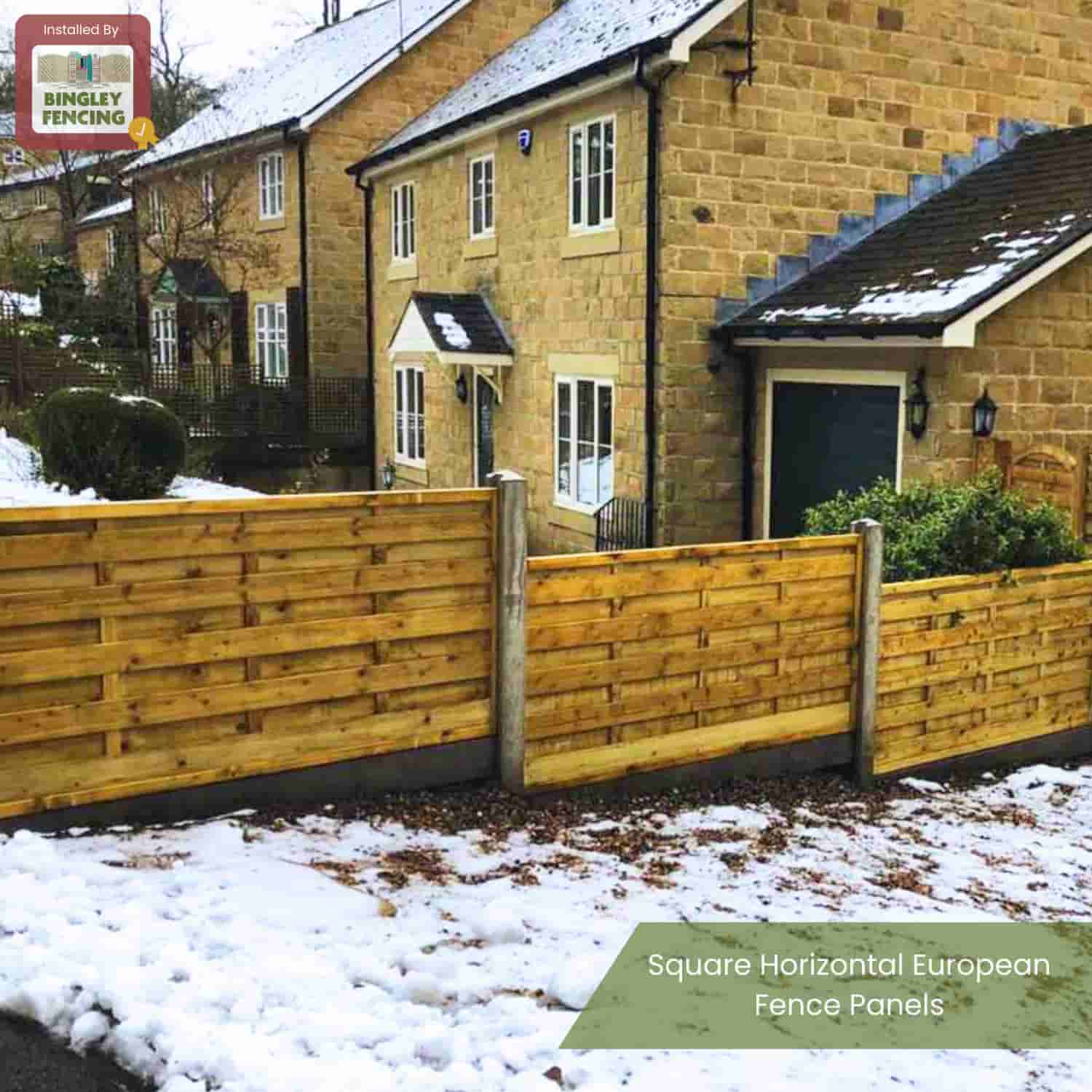

You can see from some of the installation images above that these panels create a solid fence solution with strong aesthetic appeal.
Fence Specification
| Feature | Specification |
|---|---|
| Panel Width | 1800mm (6ft) |
| Panel Heights | 300mm (1ft), 600mm (2ft), 900mm (3ft), 1200mm (4ft), 1500mm (5ft), 1800mm (6ft) |
| Panel Customisation | Yes - we can modify these products in house.Ā |
| Timber Treatment | Tanalised ( Pressure Treated) Requires Minimal Maintenance |
| Timber | Treated softwood, Class 3/4 |
| Panel Construction | Panels have mortise & tenon joints, and the boards are screwed on rather than nailed. Rebated framing all around. |
| ComponentĀ Dimensions |
Framing 45mm x 55mm |
| Surface Finish |
Smooth planed with rounded edges. |
| Benefits |
Privacy, Security,Ā |
| Important Info |
European panels sizes are based on 1800mm wide - which just slightly shorter of regular 6ft width panels (1830mm). If you are installing the panels into existing posts you may need a Panel Extension Kit to fit in the space of a regular fence panel. |
| Matching Products |
Square Horizontal Gate, Smooth Planed Euro- Post Same Design with a lattice Top Detail |
- Fence posts (timber & concrete)
- Gravel boards
- Fence panel capping
- Fixings & installation accessories
